Tower Cabinets & Chassis
CMX509M
Full Tower · Storage
A storage-first full tower: 8 HDD + 10 SSD bays, 420 mm GPU clearance, triple silent fans included and radiator mounts front and top.
- 8 × HDD + 10 × SSD bays
- 420 mm GPU · 170 mm cooler clearance
- 3 × 120 mm silent fans included
- 240/360 mm radiators front & top
Technical specifications
| Form Factor | Full Tower |
| Chassis Material | SPCC 0.8 mm, black painted interior |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |

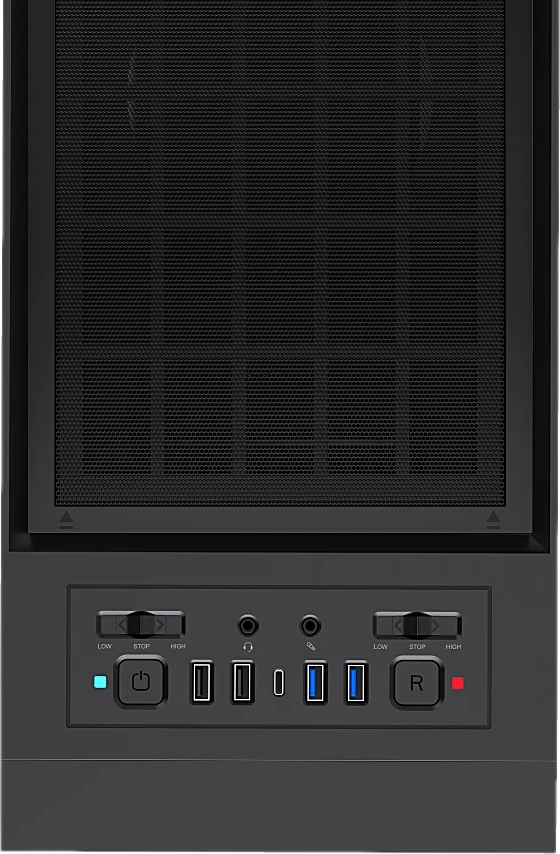

| Front Panel | Elegant matte finish with mesh |
| Top Panel | Mesh, for better heat dissipation |
| Side Panel (Left) | Big window side panel |
| External Drive Bays | 3 × 5.25" ODD |
| Internal 3.5" Bays (HDD) | 8 |
| Internal 2.5" Bays (SSD) | 10 (exchangeable) |
| USB Ports | 2 × USB 2.0 · 2 × USB 3.0 |
| Fan Controller | 2 (up to 6 fans) |
| Cooling — Included | 2 × 120 mm front + 1 × 120 mm rear silent fans |
| Cooling — Bottom | 1 × 120 mm (optional) |
| Water Cooling | Front & top 240 / 360 mm · rear 120 mm |
| PSU Cover | Yes |
| Dust Filter | Bottom cover with 2 dust filters |
| Expansion Slots | 8 |
| Max GPU Length | 420 mm |
| Max CPU Cooler Height | 170 mm |
| Cable Management Depth | 25 mm |
| Chassis Dimensions | 470 × 210 × 465 mm |
| Net / Gross Weight | 8.7 kg / 9.8 kg |
