Tower Cabinets & Chassis

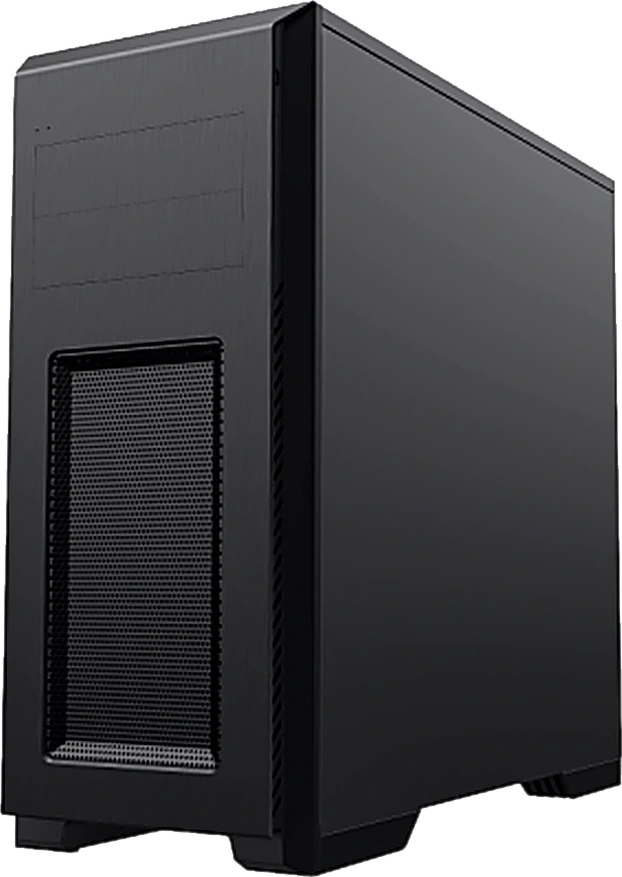

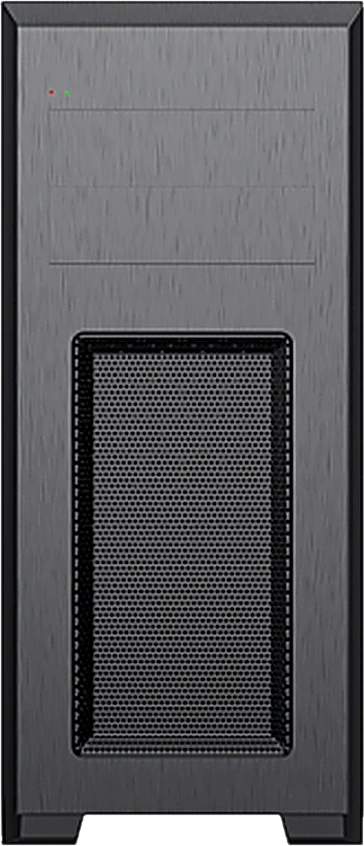

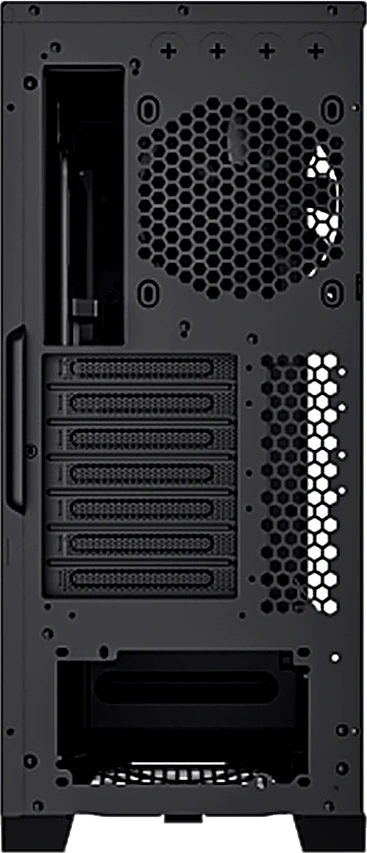

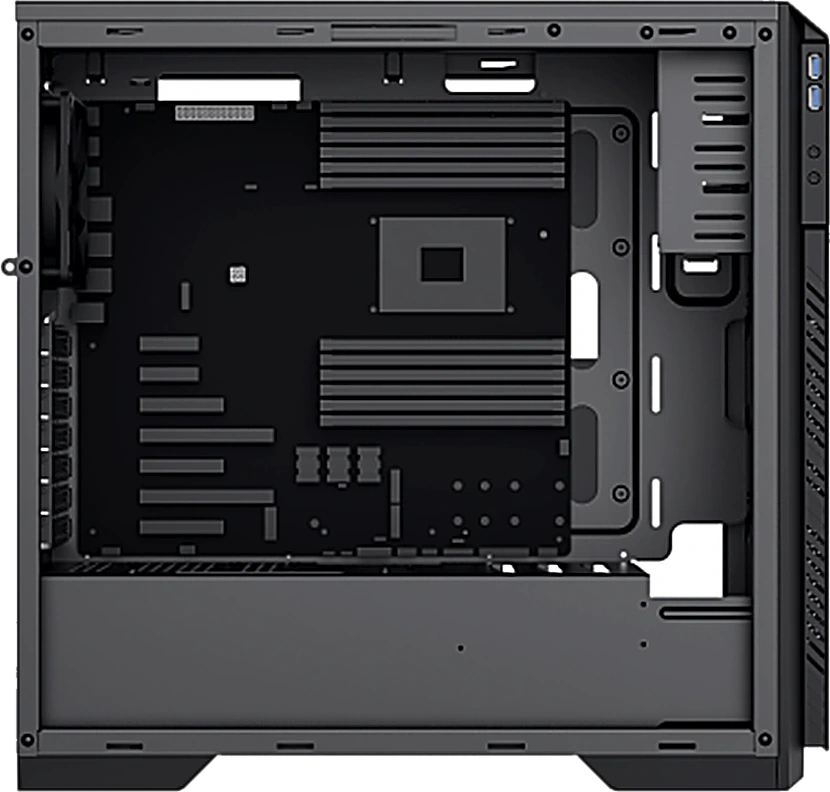

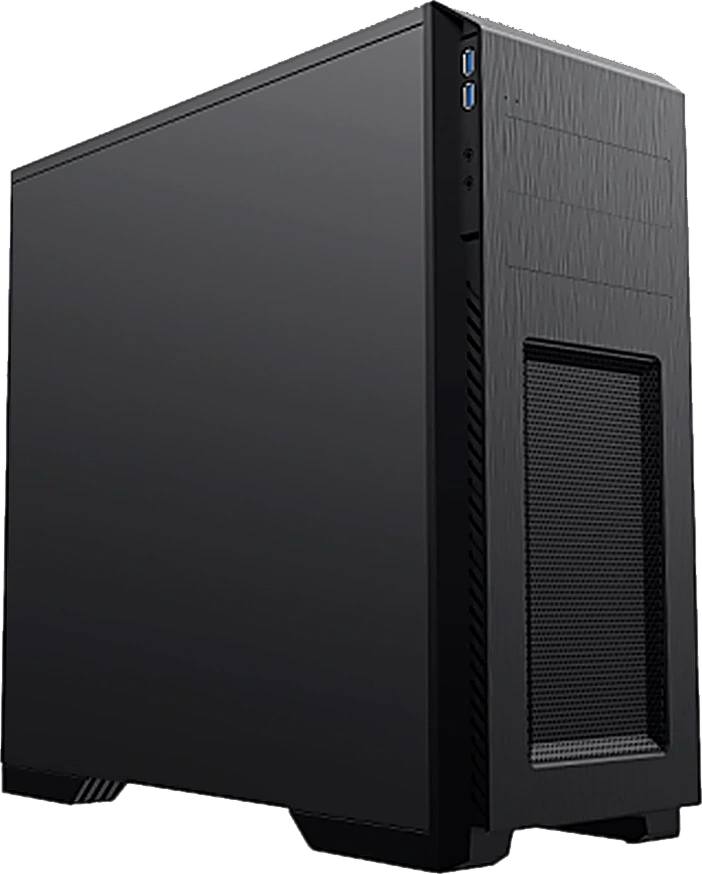

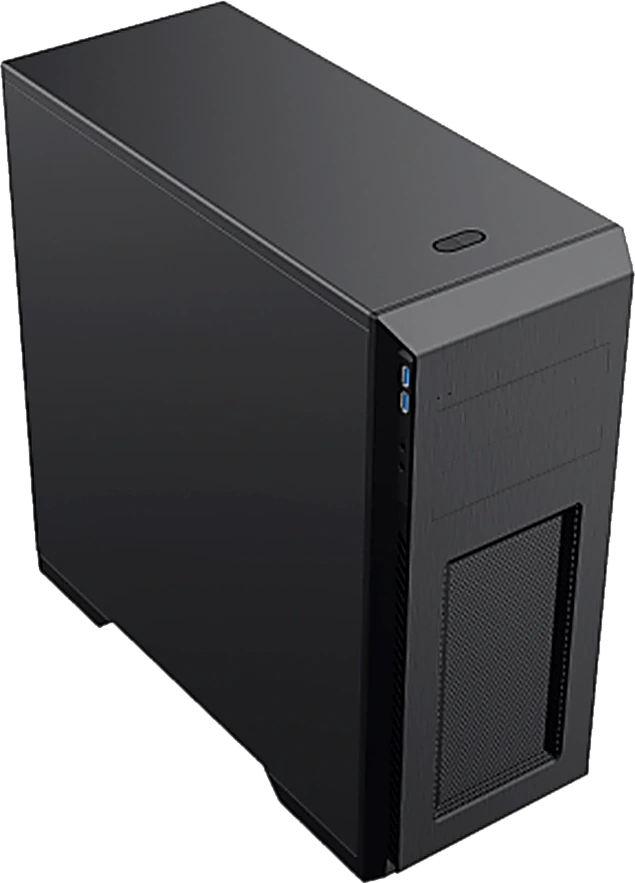

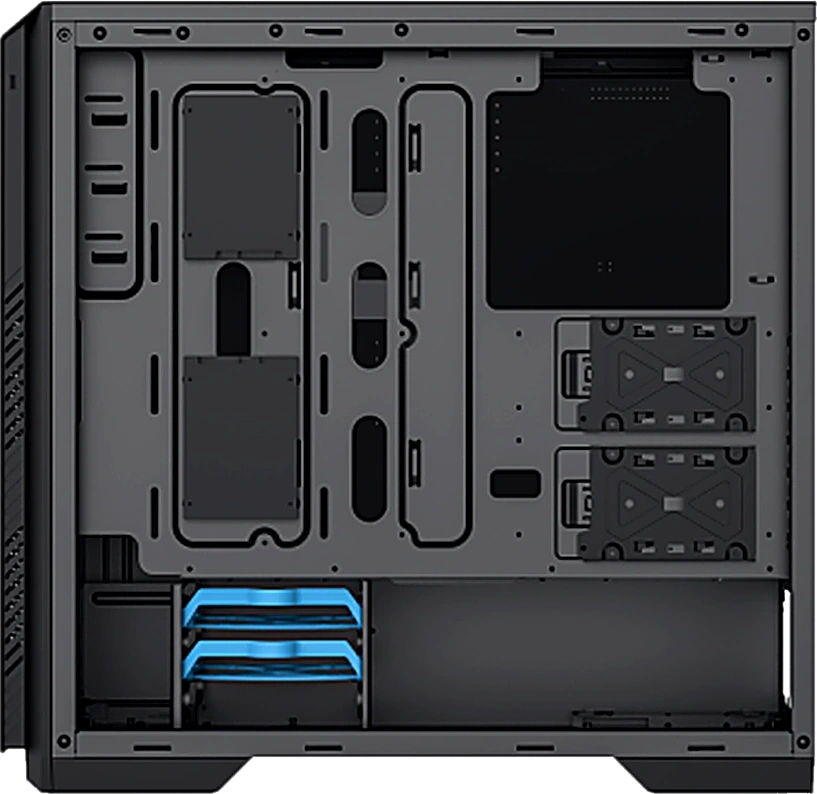

CM7199
EATX Workstation Tower
The flagship EATX workstation tower — SPCC steel, 360 mm radiator support and front USB-C, built for professional builds that run flat-out.
- EATX / ATX / M-ATX / ITX support
- SPCC 0.7 mm · black painted interior
- 360 mm front radiator · USB 3.1 Type-C
- 7 expansion slots · bottom-mounted PSU
Technical specifications
| Form Factor Support | EATX (305×330 mm), ATX, Micro-ATX, Mini-ITX |
| Chassis Material | SPCC 0.7 mm, black painted interior |
| PSU Form Factor | Bottom mounted / ATX |
| Front Panel | ABS + mesh |
| Top / Side Panels | Metal covers |
| External Drive Bays | 2 × 5.25" ODD (with ATX motherboard) |
| Internal 3.5" Bays (HDD) | 3 |
| Internal 2.5" Bays (SSD) | 4 |
| USB Ports | 2 × USB 3.0 · 1 × USB 3.1 Type-C Gen2 |
| HD Audio | Yes |
| Cooling — Front | 3 × 120 mm (optional) |
| Cooling — Rear | 1 × 120 mm (optional) |
| Water Cooling — Front | 120 / 240 / 360 mm (360 mm without ODD) |
| Water Cooling — Rear | 120 mm |
| Dust Filter | Bottom, with dust cover |
| Expansion Slots | 7 |
| Branding | OEM (no logo) |
| Chassis Dimensions | 470 × 210 × 465 mm (L×W×H) |
| Full Case Dimensions | 512 × 212 × 487 mm |
| Carton Dimensions | 540 × 286 × 597 mm |
