Tower Cabinets & Chassis
CM4U-A544
4U Rackmount Server

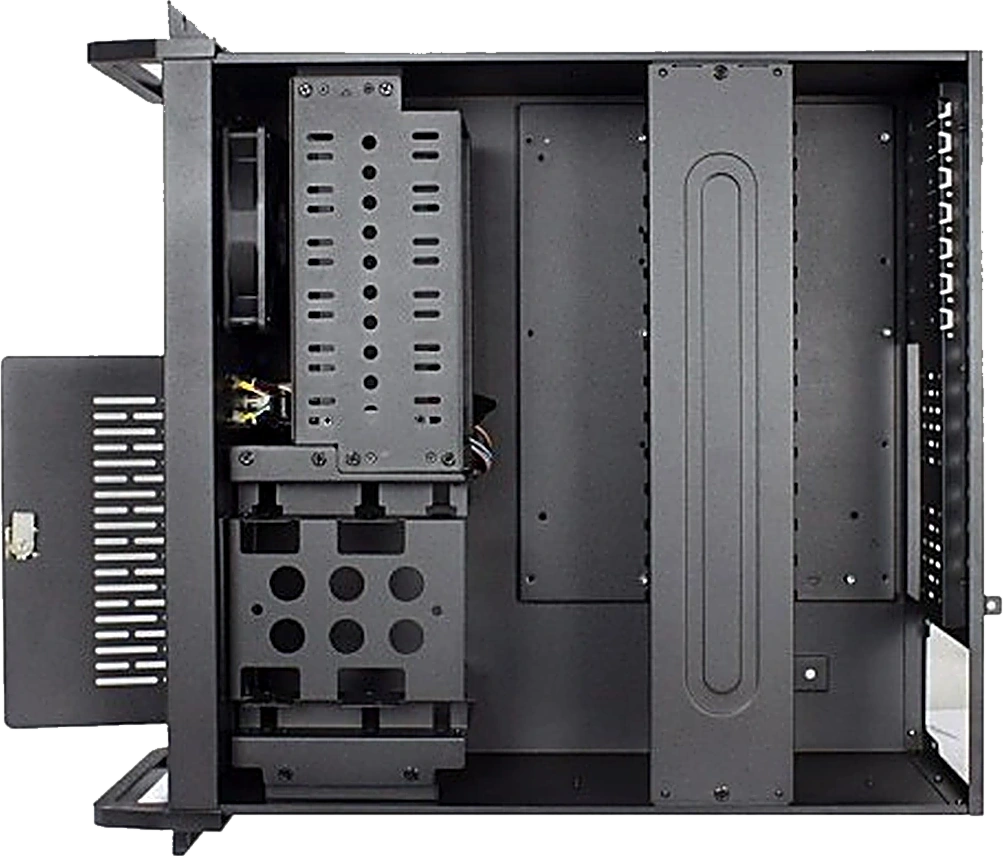

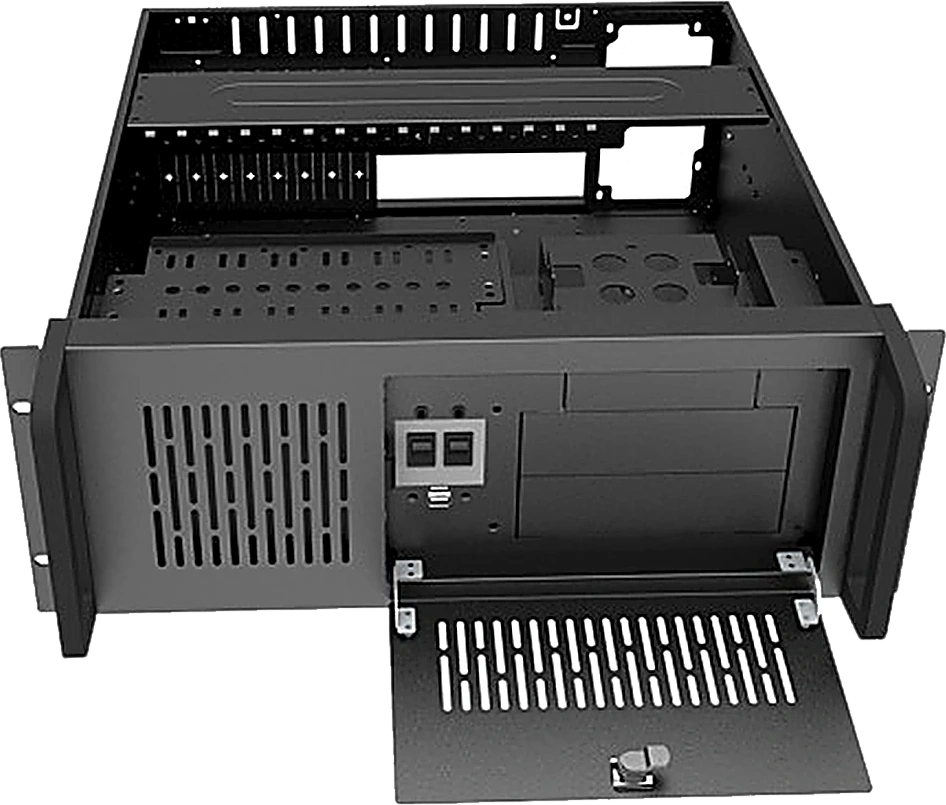

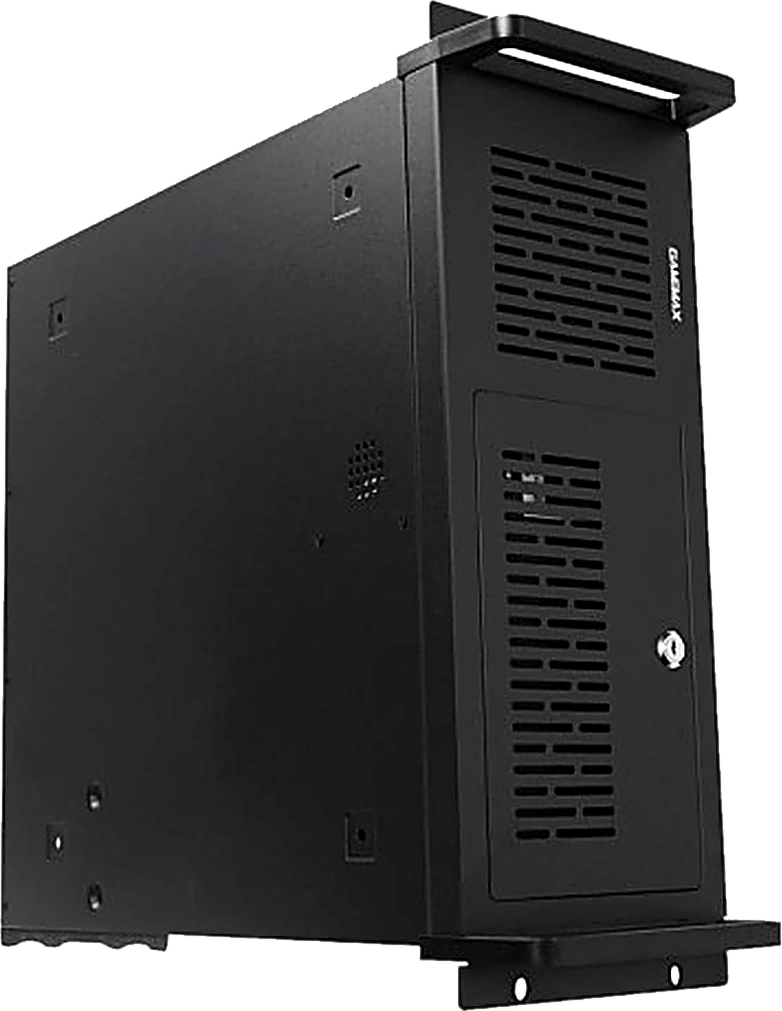

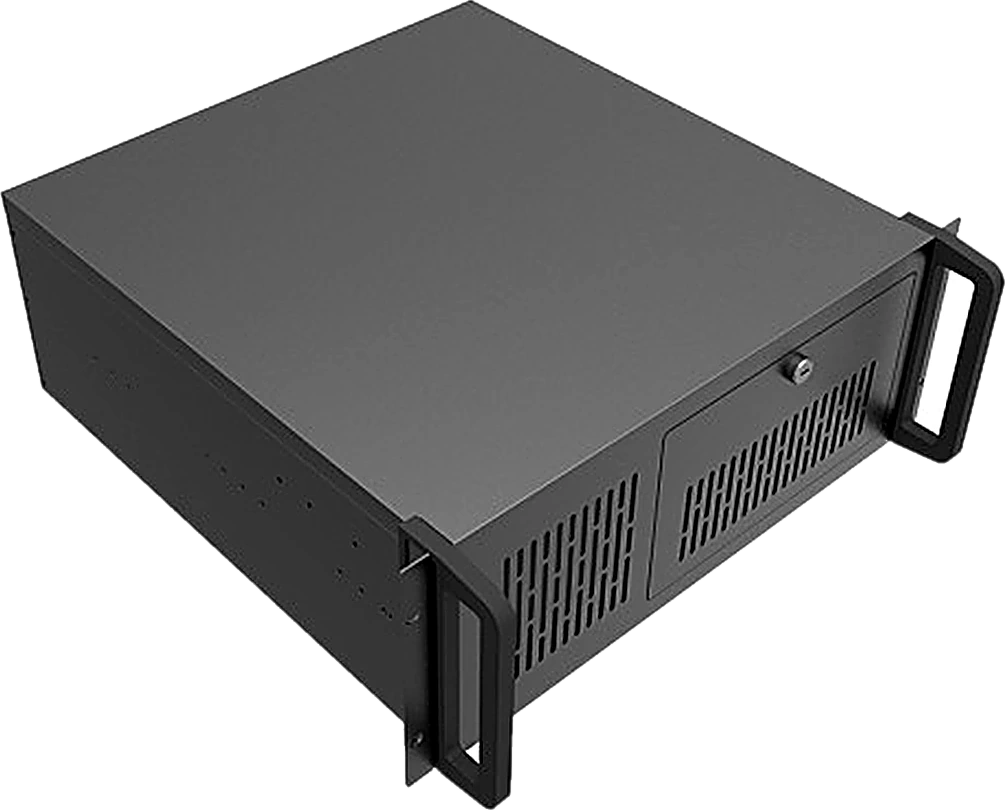

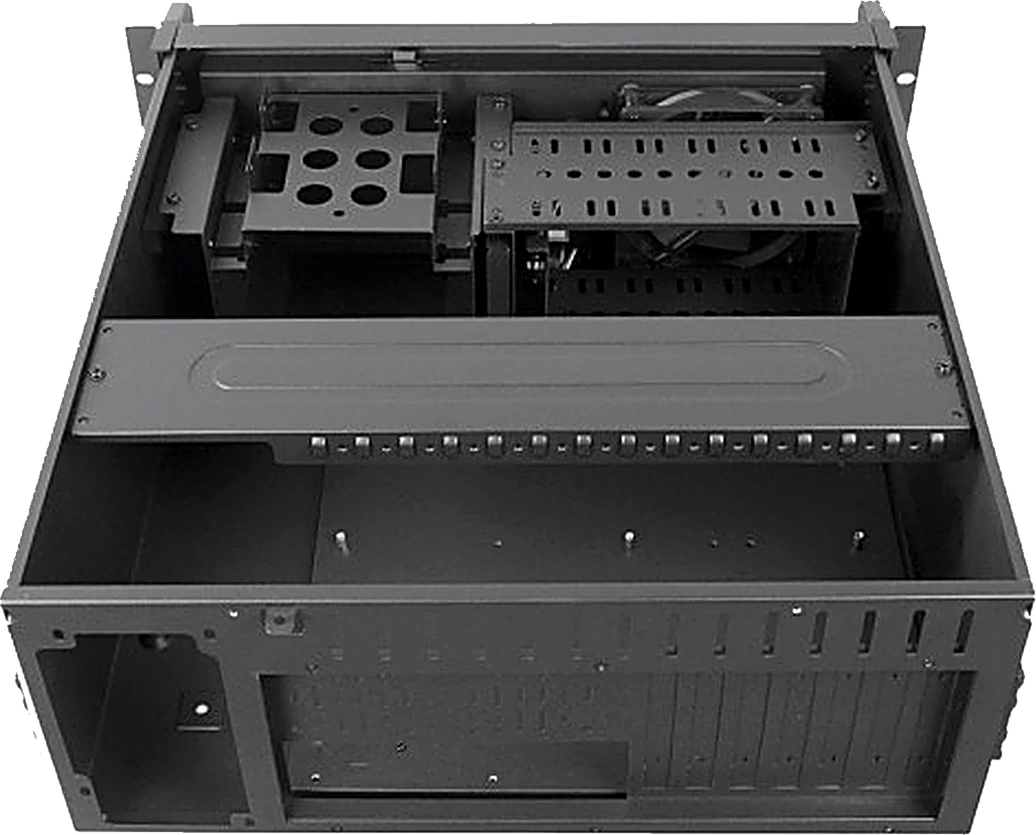

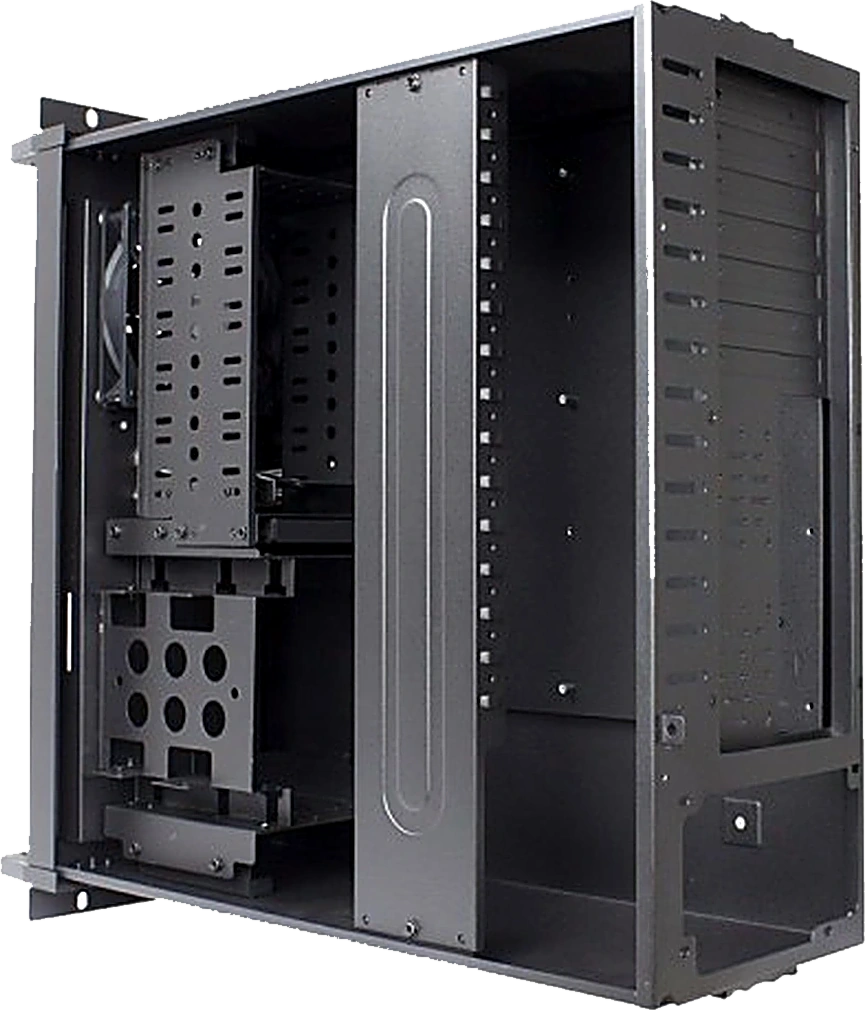

A 4U rackmount server chassis in 1.0 mm SECC steel — 8 internal 3.5" bays, lockable front door and cross-beam support for heavy expansion cards.
- 8 × 3.5" internal bays
- 1.0 mm SECC steel · lockable door
- Cross-beam PCI support for heavy cards
- 7 full-size expansion slots
Technical specifications
| Form Factor | 4U Rackmount |
| Motherboard Support | ATX, Micro-ATX |
| Body Material | 1.0 mm SECC steel |
| Front Bezel | 1.5 mm SGCC steel, lockable |
| External Bays | 2 × 5.25" |
| Internal Bays | 8 × 3.5" |
| Expansion Slots | 7 × full size |
| Cooling — Front | 1 × 120 mm fan (included) |
| Cooling — Rear | Space for 2 × 60 mm fans |
| I/O Ports | 2 × USB 2.0 |
| Max GPU Length | 270 mm |
| Max CPU Cooler Height | 125 mm |
| Cabinet Features | Cross-beam support with 3 × PCI / PCIe supports |
| In the Box | Case, screw pack, door-lock keys, 4 × feet |
| Unit Dimensions | 503 × 177 × 480 mm |
| Net / Gross Weight | 11 kg / 13.1 kg |
