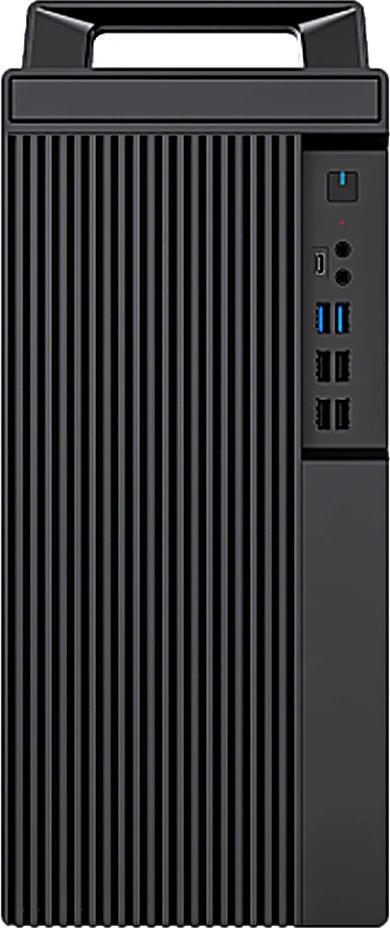

CM27S
Mini Tower · SFF
A 17 cm-wide mini tower that still swallows a 270 mm GPU — tool-free bays, Kensington security and optional Type-C for compact business builds.
- Micro-ATX / Mini-ITX · tool-free bays
- Kensington slot + padlock security
- 270 mm GPU in a 17 cm-wide body
- DB9 / DB25 COM port options
Technical specifications
| Form Factor | Mini Tower |
| Chassis Material | SGCC 0.7 / 0.8 mm |
| Motherboard Support | Micro-ATX (max 244×244 mm), Mini-ITX |
| External Drive Bays | 1 × slim ODD 9.5 mm (tool-free) |

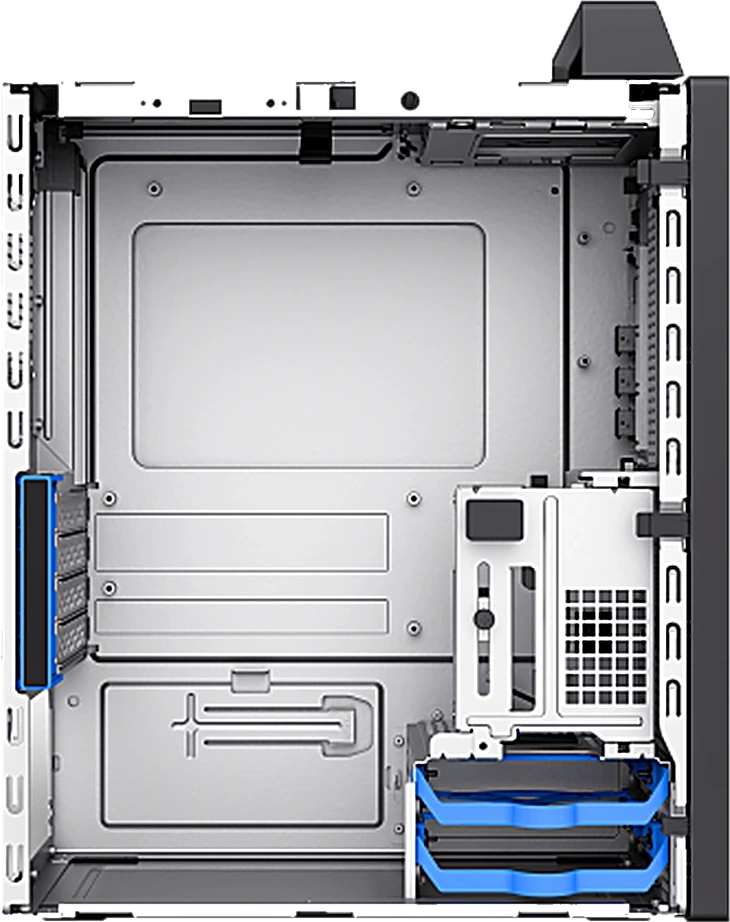

| Internal Drive Bays | 2 × 3.5" HDD or 2 × 2.5" SSD (tool-free) |
| USB Ports | 4 × USB 2.0 · 2 × USB 3.2 Gen1 · 1 × Type-C Gen2 (opt.) |
| COM Ports | DB9, DB25 |
| Security | Kensington slot, padlock loop |
| Optional Features | Intrusion switch, internal speaker, antenna, handle |
| Cooling — Rear | 1 × 92 / 80 mm (optional) |
| PCI Slots | 4 (screw-less clips) |
| Max GPU Length | 270 mm |
| Max CPU Cooler Height | 143 mm |
| Max PSU Length | 140 mm |
| Chassis Dimensions | 303 × 170 × 373 mm |
| Net / Gross Weight | 4.4 kg / 5.1 kg |
